規格
|
H3
|
n-M1
|
ΦD
|
L1
|
L2
|
L
|
H2
|
重量(KG)
|
PN1.0
|
PN1.6
|
DN40
|
71
|
4-M16
|
4-M16
|
110
|
33.5
|
30
|
161
|
275
|
4.2
|
DN50
|
82.55
|
4-M16
|
4-M16
|
125
|
42
|
32
|
161
|
286.93
|
5.66
|
DN65
|
95.25
|
4-M16
|
4-M16
|
145
|
45
|
47
|
161
|
299.63
|
6.13
|
DN80
|
101.6
|
4-M16
|
8-M16
|
160
|
45
|
65
|
161
|
305.88
|
6.76
|
DN100
|
123.83
|
8-M16
|
8-M16
|
180
|
52
|
91
|
188
|
327.03
|
11.91
|
DN125
|
138.53
|
8-M16
|
8-M16
|
210
|
55
|
112
|
188
|
339.73
|
13.8
|
DN150
|
149.23
|
8-M20
|
8-M20
|
240
|
56
|
146
|
188
|
352.43
|
16.98
|
DN200
|
180.98
|
8-M20
|
12-M20
|
295
|
61
|
194
|
268
|
424.35
|
24.07
|
DN250
|
209.55
|
12-M20
|
12-M24
|
350
|
66
|
242
|
268
|
456.1
|
33.8
|
355
|
DN300
|
247.65
|
12-M20
|
12-M24
|
400
|
77
|
292
|
268
|
500.55
|
42.8
|
410
|
DN350
|
279.4
|
12-M20
|
16-M24
|
460
|
77
|
325
|
268
|
532.3
|
70.73
|
470
|
DN400
|
304.8
|
16-M24
|
16-M27
|
515
|
102
|
380
|
268
|
564.05
|
105.2
|
525
|
DN450
|
365.13
|
20-M24
|
20-M27
|
565
|
114
|
428
|
268
|
586.28
|
128.35
|
585
|
DN500
|
371.48
|
20-M24
|
20-M30
|
620
|
130.3
|
474
|
268
|
643.43
|
156.85
|
650
|
DN600
|
457.2
|
20-M27
|
20-M33
|
725
|
152
|
573
|
368
|
890.98
|
276.25
|
770
|
注:表格中每隔兩個數值分別表示PN10和PN16兩種壓力下的參數值。
Note:The table at the two values that were PN10 and PN16 under the pressure of the two parameters.
名稱Name
|
材料Materials
|
閥體Body
|
灰鑄鐵、球墨鑄鐵、鑄鋼、304不銹鋼、316不銹鋼、316L不銹鋼Cast Iron,Ductile Iron,Carbon Steel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L
|
閥板Disc
|
球鐵尼龍、球鐵電鍍、304不銹鋼、316不銹鋼、316L不銹鋼、雙相不銹鋼、鋁青銅Ductile Iron Coated by Nylon,Ductile Iron Coated by Nickel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L,Duplex Stainless Steel,Aluminum Bronze
|
閥座Seat
|
三元乙丙、丁腈、聚四氟乙稀、耐磨乙丙、耐溫乙丙、氟橡膠、硅橡膠EPDM,NBR,PTFE,Wear-resistant EPDM,High-temperature EPDM,Fluorine Rubber,Silicon Rubber
|
閥軸Stem
|
45#碳鋼、304不銹鋼、316不銹鋼、416不銹鋼Carbon Steel 45#,Stainless Steel 304,Stainless Steel 316,Stainless Steel 416
|

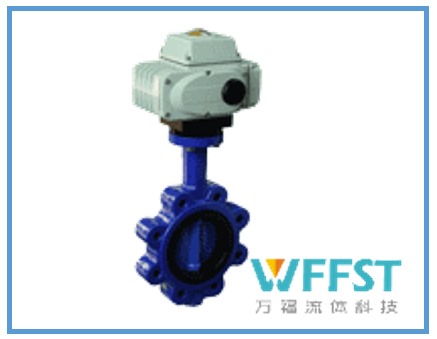

產品型號Products Model
|
WF692D97L1X-10/16
|
公稱通徑Normal Diameter
|
DN40-DN600
|
公稱壓力(Mpa)Normal Diameter
|
PN1.0-1.6MPa
|
適用介質Applicable medium
|
水、海水、污水、油、空氣、食品、弱酸堿等Water,Sea Water,Sewage,Oil,Air,Food,Weak acid and soda etc.
|
適用溫度Applicable temperature
|
-10~110℃
|
|
