規(guī)格
|
H2
|
H3
|
Φd
|
ΦD
|
ΦD1
|
L
|
L1
|
L2
|
重量(KG)
|
|
DN50
|
255
|
70
|
20
|
125
|
96.5
|
161
|
42
|
32
|
4.33
|
|
DN65
|
267
|
80
|
20
|
145
|
110
|
161
|
45
|
47
|
4.89
|
|
DN80
|
280
|
92
|
20
|
160
|
124
|
161
|
45
|
65
|
5.44
|
|
DN100
|
297
|
107
|
20
|
180
|
158
|
188
|
52
|
91
|
8.95
|
|
DN125
|
317
|
121
|
20
|
210
|
187
|
188
|
55
|
112
|
11.34
|
|
DN150
|
337
|
134
|
23
|
240
|
214
|
188
|
56
|
146
|
15.38
|
|
DN200
|
407
|
170
|
23
|
295
|
266
|
268
|
61
|
194
|
20.65
|
|
DN250
|
446
|
208
|
23
|
350
|
325
|
268
|
66
|
242
|
29.31
|
|
26
|
355
|
|
DN300
|
471
|
240
|
23
|
400
|
380
|
268
|
77
|
292
|
38.12
|
|
26
|
410
|
注：表格中每隔兩個數值分別表示PN10和PN16兩種壓力下的參數值。
Note:The table at the two values that were PN10 and PN16 under the pressure of the two parameters.
|
名稱Name
|
材料Materials
|
|
閥體Body
|
灰鑄鐵、球墨鑄鐵Cast Iron,Ductile Iron
|
|
閥板Disc
|
球鐵尼龍、球鐵電鍍、304不銹鋼、316不銹鋼、316L不銹鋼、雙相不銹鋼、鋁青銅Ductile Iron Coated by Nylon,Ductile Iron Coated by Nickel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L,Duplex Stainless Steel,Aluminum Bronze
|
|
閥座Seat
|
三元乙丙、丁腈、耐磨乙丙、耐溫乙丙、氟橡膠、硅橡膠EPDM,NBR,Wear-resistant EPDM,High-temperature EPDM,Fluorine Rubber,Silicon Rubber
|
|
閥軸Stem
|
45#碳鋼、304不銹鋼、316不銹鋼、416不銹鋼Carbon Steel 45#，Stainless Steel 304，Stainless Steel 316，Stainless Steel 416
|
|

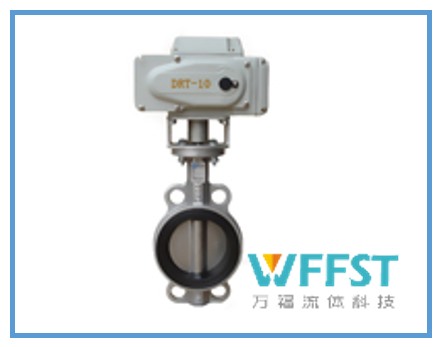

產品型號Products Model
|
691L/D97A1X-10/16
|
|
公稱通徑(mm)Normal Diameter
|
DN50-DN300
|
|
公稱壓力(Mpa)Normal Diameter
|
PN1.0-1.6MPa
|
|
適用介質Applicable medium
|
水、海水、污水、油、空氣、食品、弱酸堿等Water,Sea Water,Sewage,Oil,Air,Food,Weak acid and soda etc.
|
|
適用溫度Applicable temperature
|
-10～110℃
|
|
