規格
|
H2
|
H3
|
Φd
|
ΦD
|
ΦD1
|
L
|
L1
|
L2
|
重量(KG)
|
|
DN40
|
237
|
69.5
|
20
|
110
|
88
|
161
|
33.5
|
30
|
3.69
|
|
DN50
|
255
|
70
|
20
|
125
|
96.5
|
161
|
42
|
32
|
4.2
|
|
DN65
|
267
|
80
|
20
|
145
|
110
|
161
|
45
|
47
|
4.65
|
|
DN80
|
280
|
92
|
20
|
160
|
124
|
161
|
45
|
65
|
5.21
|
|
DN100
|
297
|
107
|
20
|
180
|
158
|
188
|
52
|
91
|
8.41
|
|
DN125
|
317
|
121
|
20
|
210
|
187
|
188
|
55
|
112
|
9.68
|
|
DN150
|
337
|
134
|
23
|
240
|
214
|
188
|
56
|
146
|
14.13
|
|
DN200
|
407
|
170
|
23
|
295
|
266
|
268
|
61
|
194
|
19.14
|
|
DN250
|
446
|
208
|
23
|
350
|
325
|
268
|
66
|
242
|
25.65
|
|
26
|
355
|
|
DN300
|
471
|
240
|
23
|
400
|
380
|
268
|
77
|
292
|
33.19
|
|
26
|
410
|
|
DN350
|
509
|
265
|
23
|
460
|
422
|
268
|
77
|
325
|
48.43
|
|
26
|
470
|
|
DN400
|
541
|
297
|
26
|
515
|
473
|
268
|
102
|
380
|
69.84
|
|
30
|
525
|
|
DN450
|
576
|
331
|
26
|
565
|
526
|
268
|
114
|
428
|
85.35
|
|
30
|
585
|
|
DN500
|
604
|
361
|
26
|
620
|
577
|
268
|
130.3
|
474
|
108.85
|
|
33
|
650
|
|
DN600
|
891
|
459
|
30
|
725
|
693
|
368
|
152
|
573
|
229.75
|
|
36
|
770
|
注：表格中每隔兩個數值分別表示PN10和PN16兩種壓力下的參數值。
Note:The table at the two values that were PN10 and PN16 under the pressure of the two parameters.
|
名稱Name
|
材料Materials
|
|
閥體Body
|
灰鑄鐵、球墨鑄鐵、鑄鋼、304不銹鋼、316不銹鋼、316L不銹鋼Cast Iron,Ductile Iron,Carbon Steel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L
|
|
閥板Disc
|
球鐵尼龍、球鐵電鍍、304不銹鋼、316不銹鋼、316L不銹鋼、雙相不銹鋼、鋁青銅Ductile Iron Coated by Nylon,Ductile Iron Coated by Nickel,,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L,Duplex Stainless Steel,Aluminum Bronze
|
|
閥座Seat
|
三元乙丙、丁腈、聚四氟乙稀、耐磨乙丙、耐溫乙丙、氟橡膠、硅橡膠EPDM,NBR,PTFE,Wear-resistant EPDM,High-temperature EPDM,Fluorine Rubber,Silicon Rubber
|
|
閥軸Stem
|
45#碳鋼、304不銹鋼、316不銹鋼、416不銹鋼Carbon Steel 45#，Stainless Steel 304，Stainless Steel 316，Stainless Steel 416
|
|

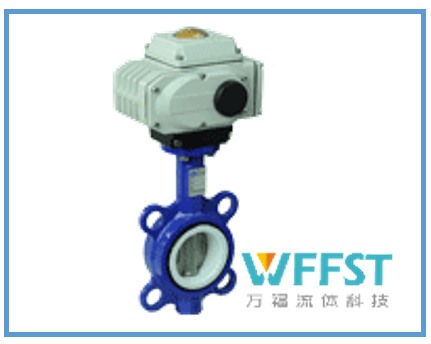

產品型號Products Model
|
690D97A1X-10/16
|
|
公稱通徑Normal Diameter
|
DN40-DN600
|
|
公稱壓力(Mpa)Normal Diameter
|
PN1.0-1.6MPa
|
|
適用介質Applicable medium
|
水、海水、污水、油、空氣、食品、弱酸堿等Water,Sea Water,Sewage,Oil,Air,Food,Weak acid and soda etc.
|
|
適用溫度Applicable temperature
|
-10～110℃
|
|
