規(guī)格
|
H2
|
H3
|
Φd
|
ΦD
|
ΦD1
|
L
|
L1
|
L2
|
重量(KG)
|
DN50
|
255
|
70
|
20
|
125
|
96.5
|
161
|
42
|
32
|
3.2
|
DN65
|
267
|
80
|
20
|
145
|
110
|
161
|
45
|
47
|
3.47
|
DN80
|
280
|
92
|
20
|
160
|
124
|
161
|
45
|
65
|
3.75
|
DN100
|
297
|
107
|
20
|
180
|
158
|
188
|
52
|
91
|
6.61
|
DN125
|
317
|
121
|
20
|
210
|
187
|
188
|
55
|
112
|
7.61
|
DN150
|
337
|
134
|
23
|
240
|
214
|
188
|
56
|
146
|
11.41
|
名稱Name
|
材料Materials
|
閥體Body
|
鑄鋁Aluminium
|
閥板Disc
|
球鐵尼龍、球鐵電鍍、304不銹鋼、316不銹鋼、316L不銹鋼、雙相不銹鋼、鋁青銅Ductile Iron Coated by Nylon,Ductile Iron Coated by Nickel,Stainless Steel 304,Stainless Steel 316,Stainless Steel 316L,Duplex Stainless Steel,Aluminum Bronze
|
閥座Seat
|
三元乙丙、丁腈、耐磨乙丙、耐溫乙丙、氟橡膠、硅橡膠EPDM,NBR,Wear-resistant EPDM,High-temperature EPDM,Fluorine Rubber,Silicon Rubber
|
閥軸Stem
|
45#碳鋼、304不銹鋼、316不銹鋼、416不銹鋼Carbon Steel 45#,Stainless Steel 304,Stainless Steel 316,Stainless Steel 416
|

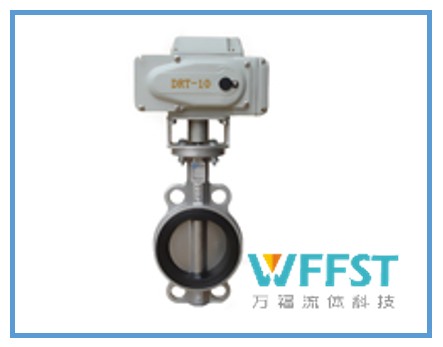

產(chǎn)品型號Products Model
|
WF691LD97A1X-10/16
|
公稱通徑(mm)Normal Diameter
|
DN50-DN150
|
公稱壓力(Mpa)Normal Diameter
|
PN1.0-1.6MPa
|
適用介質(zhì)Applicable medium
|
水、海水、污水、油、空氣、食品、弱酸堿等Water,Sea Water,Sewage,Oil,Air,Food,Weak acid and soda etc.
|
適用溫度Applicable temperature
|
-10~110℃
|
|
